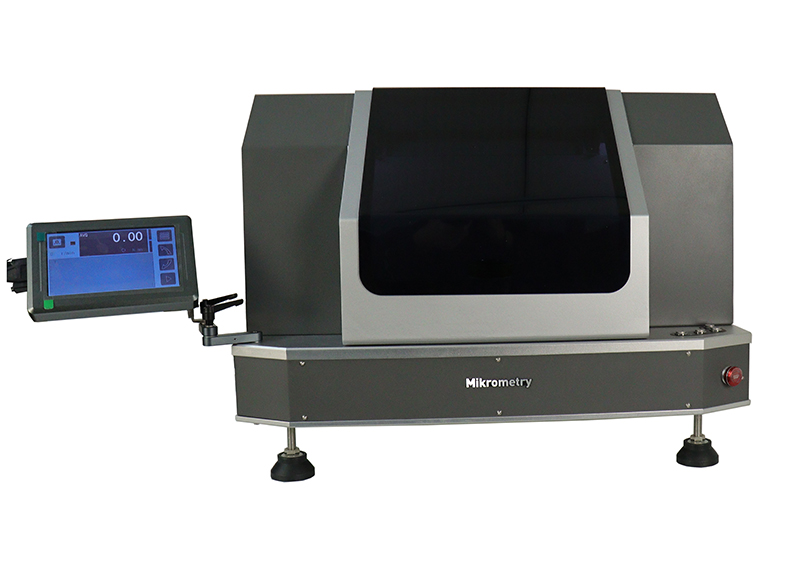

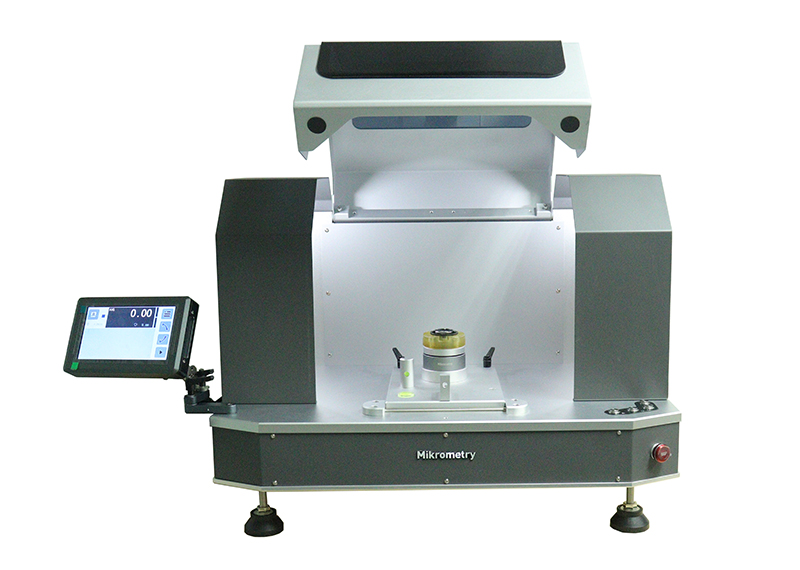

Hight accuracy, Convenient and reliable operation. The torque gauge meter can be used for fast contrast measurement in the field.
Wide range of applications - It can measure hundreds of bearings.
Automatic test, convenient and fast.
Multiple Measuring Mode: (real-time , Peak, First Peak, mean value)
7" touch screen, Digital, curve double display
Over-limit alarm, intelligent quality monitoring
Fast calibration, no need to disassemble the sensor
Special software can be used to process the measurement results on the PC
Range | 1.00~500.00N.mm |
Resolution | 0.1N.mm |
Accuracy | 0.5%±2LSB |
Units | N.mm,N.cm,kgf.cm,Lb.in |
Display | 7" TFT-LCD touch screen |
Overload | 200%F.S |
Display Mode | Digital/Diagram |
Measuring Mode | real time , Peak, First Peak,mean value |
Swing drive | brushless DC motor |
80~600r/min | |
Sampling Rate | 12kHz(max) |
Memory | 999data |
data interface | USB |
Power | Stable power output:24VDC 5A,input:AC100~240 |
Dimension | 700×500×500 mm(L×W×H) |
Weight | 37.8kg |
Note: Different specifications need to use the different special custom fixture
