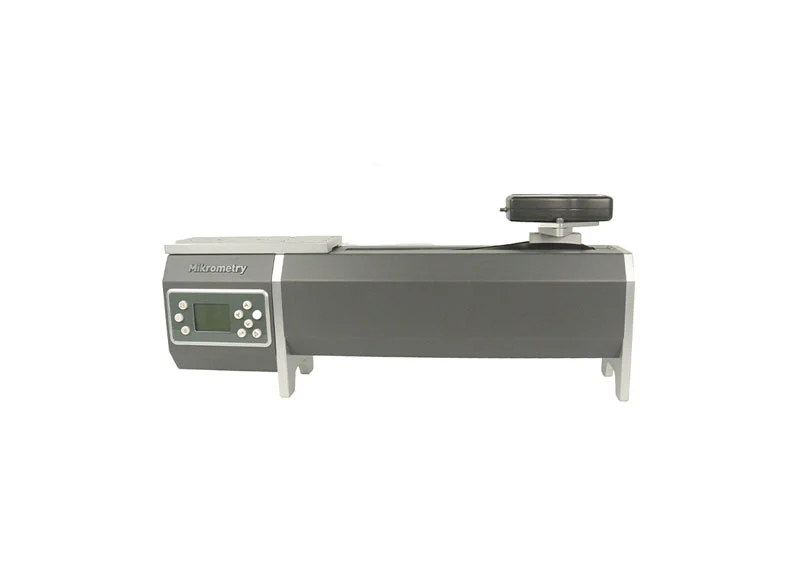

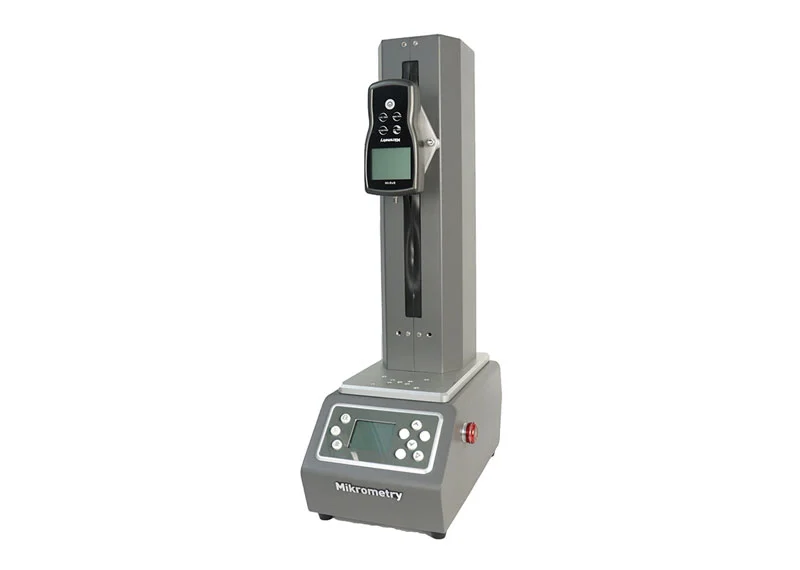

EST-FG2V/H is an electric motorized force gauge test stand. It has a built-in DC motor and displacement measurement device. With the good load stability, this motorized test stand series has a wide application range. It is also featured with the merits of wide bench test speed and high accuracy. Manual control, displacement cycle, and force value cycle functions are also equipped in this motorized force gauge test stand. The motorized test stand can be connected with a dynamometer to measure the force value and displacement, which is suitable for various industries such as push-pull load, plug-in force, fatigue test, and destruction test.
Motorized driving
Rugged construction ensures the durability of the EST-FG2 motorized test stand
The capacity of this force gauge test stand is up to 650 N (140 lbf,65kgf)
Multiple operation modes are available
Three-stage programmable cycle
Teaching & Playback programming
Force gauge data integration
USB connection to PC
Multiple limit protection functions to ensure the safe running of motorized force gauge test stand
Capacity | 650N (65KG, 140lbf) |
Stroke | 220 mm |
Speed | Adjustable Range: 30~720 mm/min Resolution:0.1 mm/min Accuracy: ±1 mm/min |
Displacement | Resolution: 0.01 mm Accuracy: ± 0.2mm/min |
Operation Mode | Manual, Cycle, Demo, Locating Mode |
Protection Functions | Position Limit Force Limit (connected to force gauge) Locked rotor. Power Protection |
Cycle Program | Three-stage cycle Displacement-based (D-cycle) Force-based(F-cycle) |
Outputs | USB-B(connect to PC) RS232 outputs Set point output, RS232(connect with force gauge) |
Operating Environment | 0 to 40℃,20 to 80% RH |
Power Supply | AC100~240V,1A |

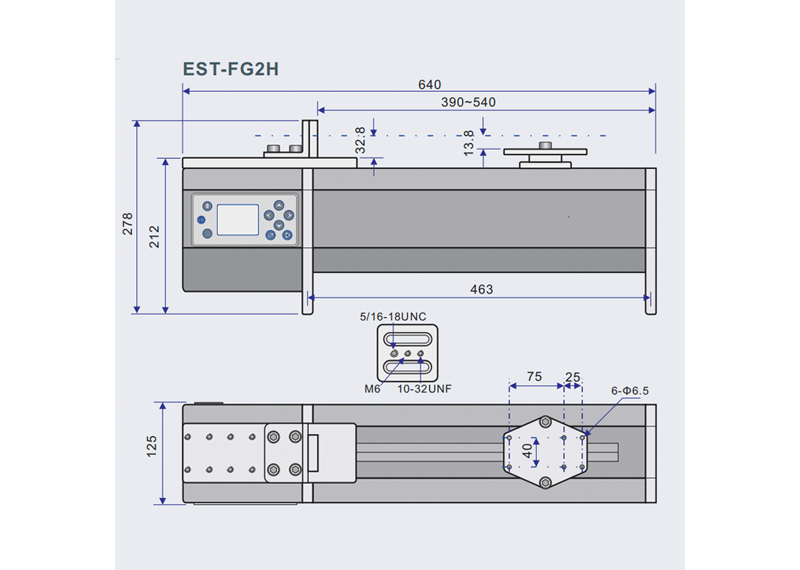

Dimensions | 630 x 320 x 180 mm(EST-FG2V) 640 x 125 x 278 mm(EST-FG2H) |
Weight | Approx. 13kg |
