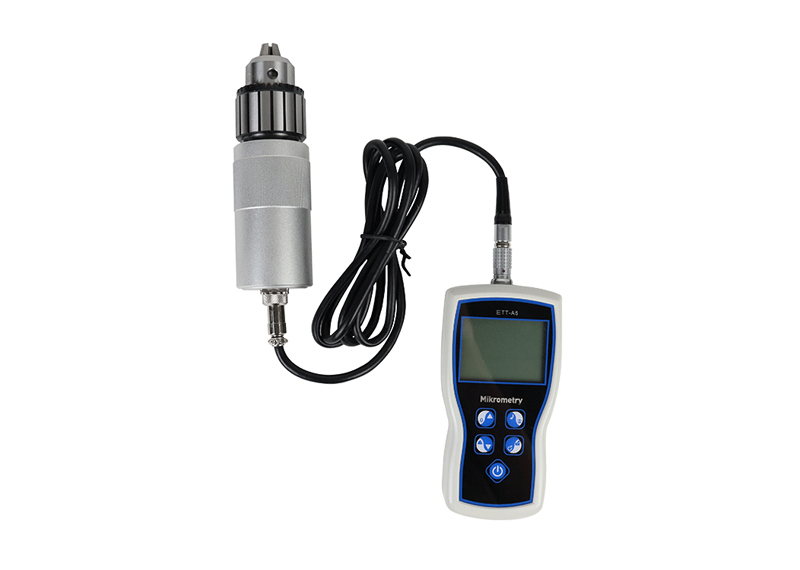

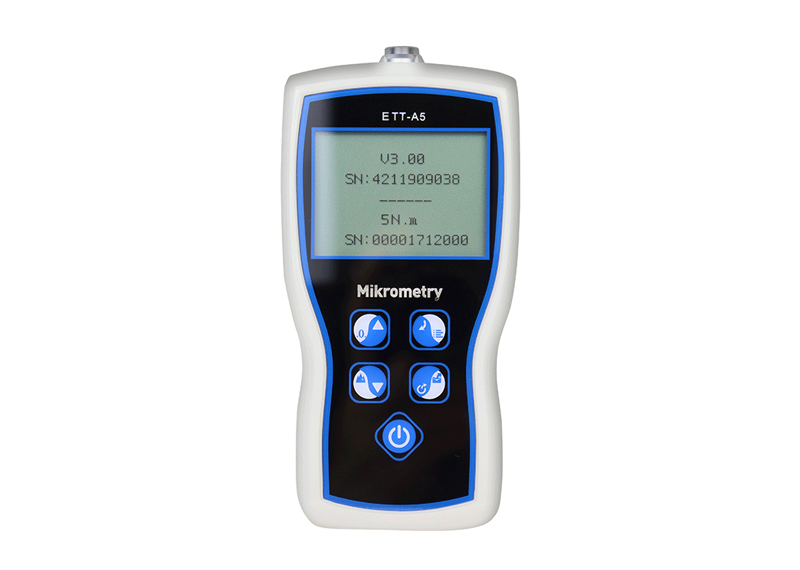

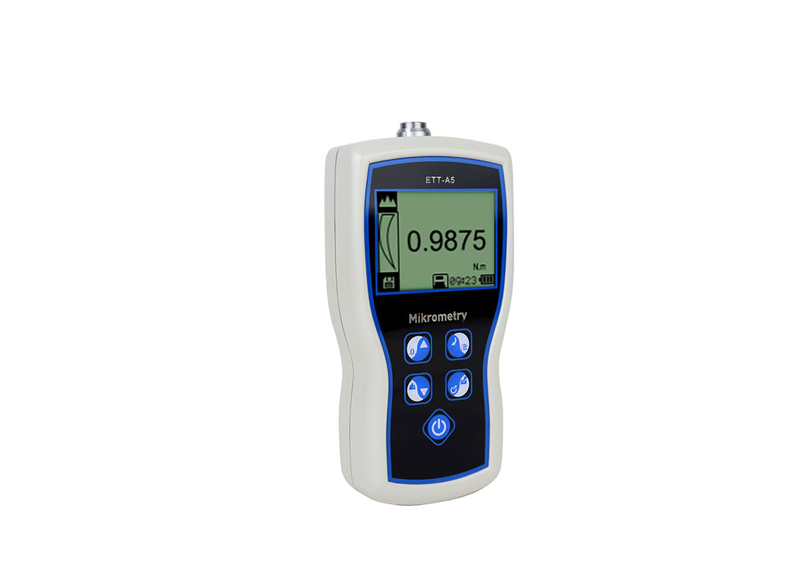

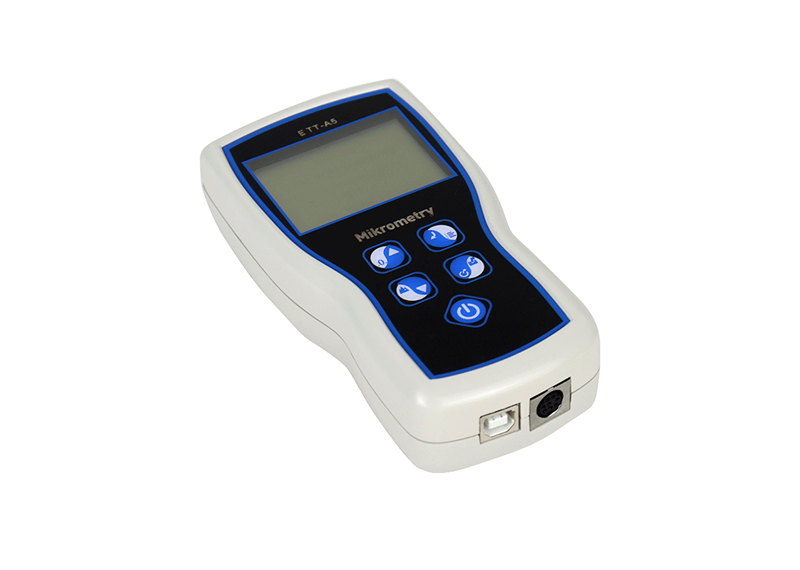

ETTA Advanced Digital Torque Indicator

Name: ETTA Advanced Digital Torque Indicator
Brand: Mikrometry instruments limited

Mikrometry digital torque gauge is a designed with our torque senser. This digital torque indicators are main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. The digital measuring instrument can be widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

Feature Of ETTA Advanced Digital Torque Indicators

Durable metal case
Automatic reversible display
Touch key for minimized disturbance
Automatic load cell identification
Curve or digital display modes
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Low battery alarm
Accuracy: ± 0.3% @Readings
Sampling Rate: up to 2KHz

Specifications Of ETTA Advanced Digital Torque Indicators

Range	5%~100% Capacity
Accuracy	± 0.3% @Readings
Selectable Units	N.m、N.cm、kgf.cm、lbf.ft、lbf.in
Display	160*128 dot matrix LCD(2.8 inch) with LED Backlight
Overload Capacity	120% F.S.
Measurement Mode	Track, Peak, First Peak,Auto Peak, Auto First Peak
Display Mode	Digital / Curve
Sampling Rate	Up to 2KHz
Memory	1000 data
Set Point	Programmable high and low limits
Battery Indicator	Display flashes battery icon when battery is low
Power	3.6VDC 800mAH Ni-Mh rechargeable batteries
Battery Life	Approx. 14 hours for continuous use
Charger	Universal USB/BM charger, Input:110~240VAC
Temperature Effects	<0.03% FS per °C
Communication	USB or RS-232
Software	Free software for USB communication
Outputs	RS-232, "Within" set point output， "Under or over" set point output
Operating environment	Temperature: -10 to 40°C
Operating environment	Relative Humidity: 20 to 80%
Storage environment	Temperature: -20 to +50°C
Storage environment	Relative Humidity: 5 to 90%

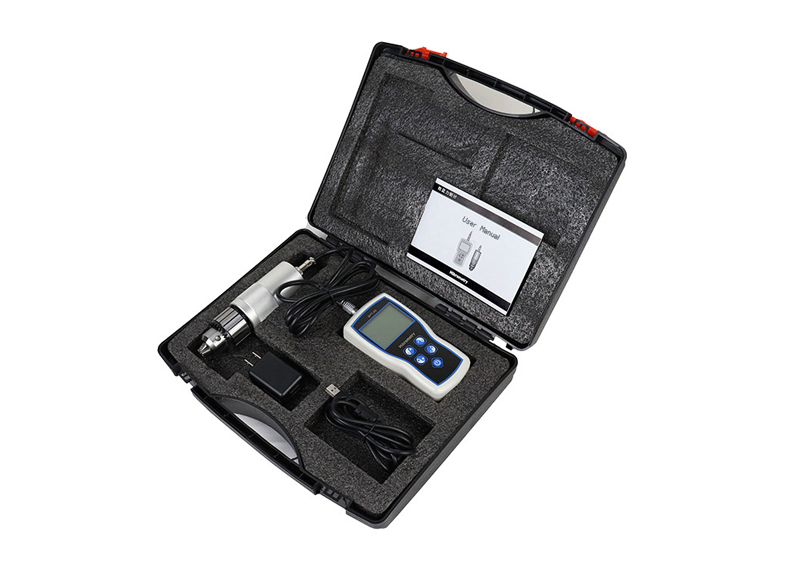

Accessories	AC adapter/charger, USB cable
Options	Mini-printer, Measuring Adapters, RS-232 Cable, EST-TT2 Torque Test Stand

Model	Capacity/ Resolution
Model	N.m	N.cm	kgf.cm	lbf.ft	lbf.in	Drill Chuck
ETTA1	1/0.0001	100/0.01	10/0.001	-	8.85/0.001	1~10 mm
ETTA5	5/0.0005	500/0.05	50/0.005	3.69/0.0005	44.3/0.005	1~10 mm
ETTA10	10/0.001	1000/0.1	100/0.01	7.38/0.001	88.5/0.01	2~13 mm
