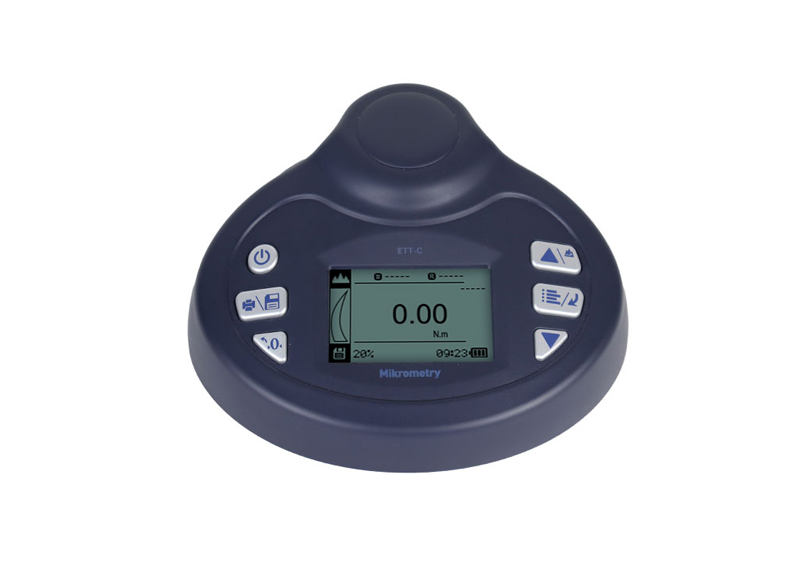

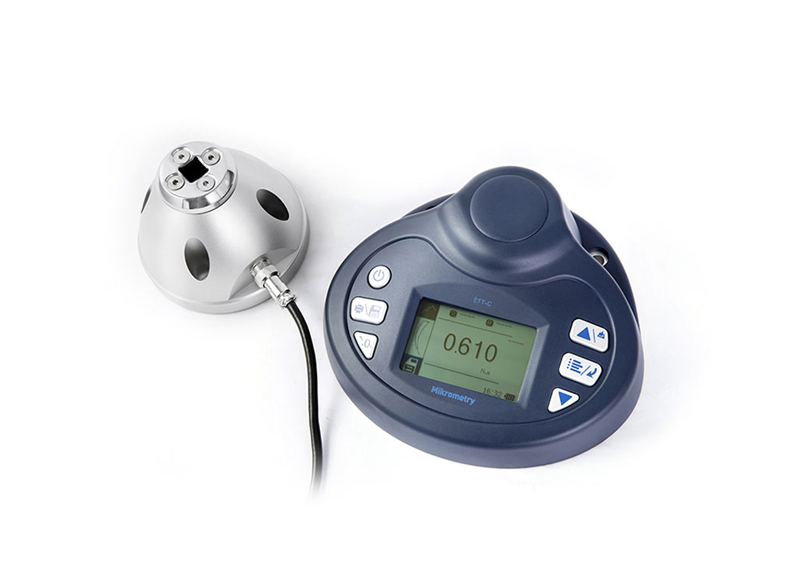

Mikrometry digital torque indicator ETTC is designed to work with a wide range of our torque sensors. With excelusive plug & test technology, all calibration and configuration data is saved within the sensor's smart connector, not the indicator, allowing for tru interchangeability. In addition, all sensors are fully compatible with our other indicators.
ETTC is a type of digital torque gauge that provides a simple and accurate detection method for pneumatic wrenches, torque wrenches, manual, electric torque screwdrivers and other tools.
Curve or digital display modes
Reverse display setting
Automatic load cell identification(ALI)
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Low battery alarm
Accuracy: ± 0.3% Readings
Sampling Rate: up to 16KHz (adjustable)
Accuracy | ± 0.3% Readings + sensor |
Selectable Units | N.m、N.cm、kgf.cm、lbf.ft、lbf.in |
Display | 240*160 dot matrix LCD(3.1 inches) with LED Backlight |
Overload Capacity | 120% of F.S. |
Measurement Mode | Track, Peak, First Peak、Auto Peak、Auto First Peak、Double Peak、Pulse |
Display Mode | Digital / Curve |
Data Sampling Rate | Up to 16KHz (adjustable) |
Memory | 1000 data |
SetPoint | Programmable high and low limits |
Power | 3.6VDC 1600mAH Ni-Mh rechargeable batteries |
Battery Life | Approx. 25 hours for continuous use |
Charger / Adaptor | Universal USB/BM charger, Input:110~240VAC |
Temperature Effects | <0.03% FS per °C |

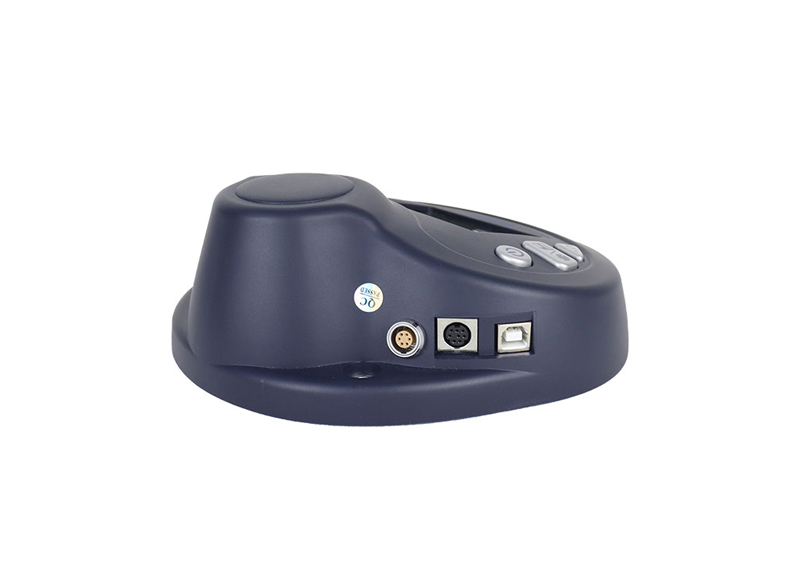

Communication | USB or RS-232 |
Software | Free software for USB communication |
Outputs | RS-232, "Within" set point output, "Under or over" set point output |
Operating environment | Temperature: -10 to 40°C |
Relative Humidity: 20 to 80% | |
Storage environment | Temperature: -20 to +50°C |
Relative Humidity: 5 to 90% | |

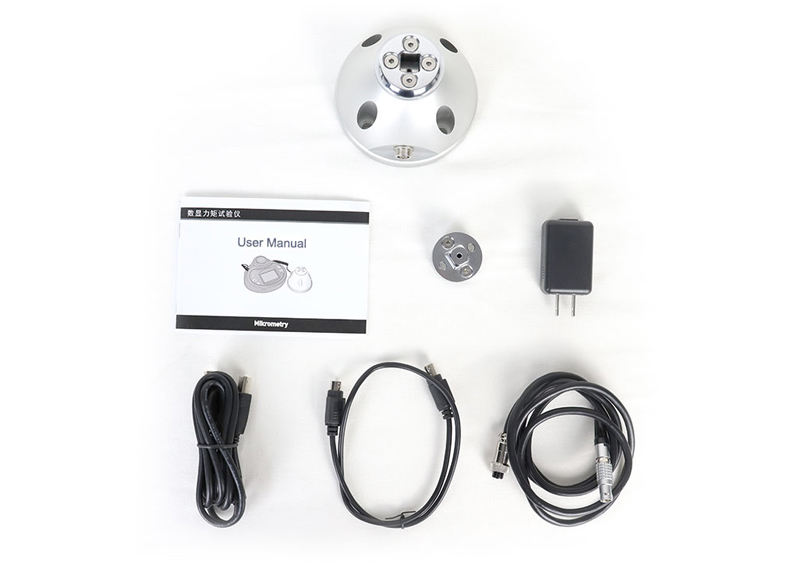

Accessories | AC adapter/charger, USB cable, Square drive adaptor |
Options | Mini-printer, RS-232 Cable, Rundown Adapter, ETS-TT1 Torque Test Stand, ETS-TT2 Torque Test Stand. |
