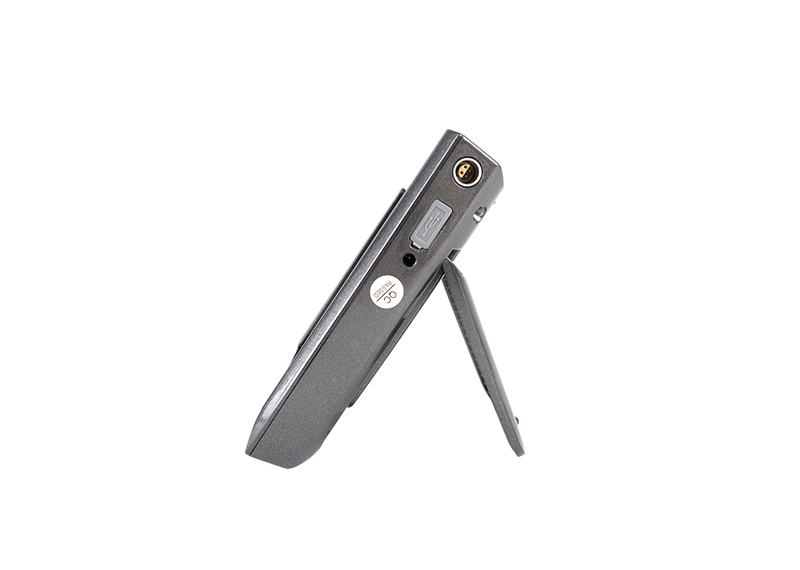

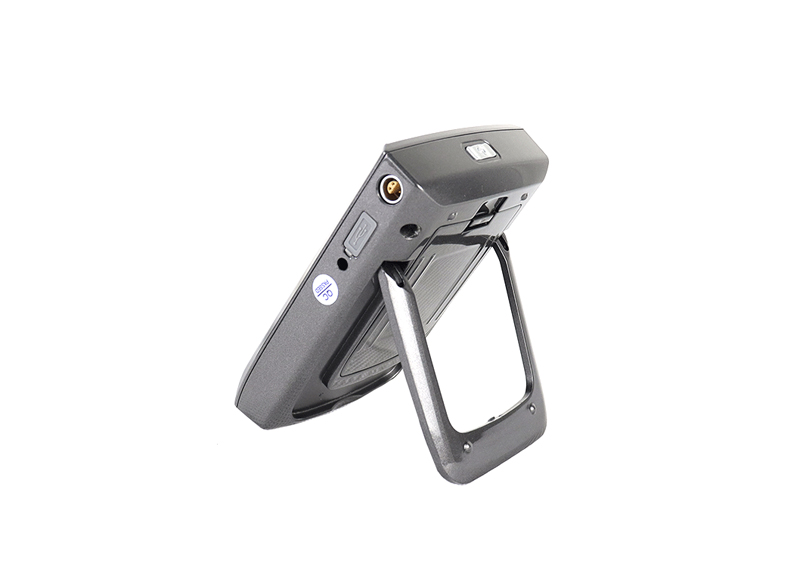

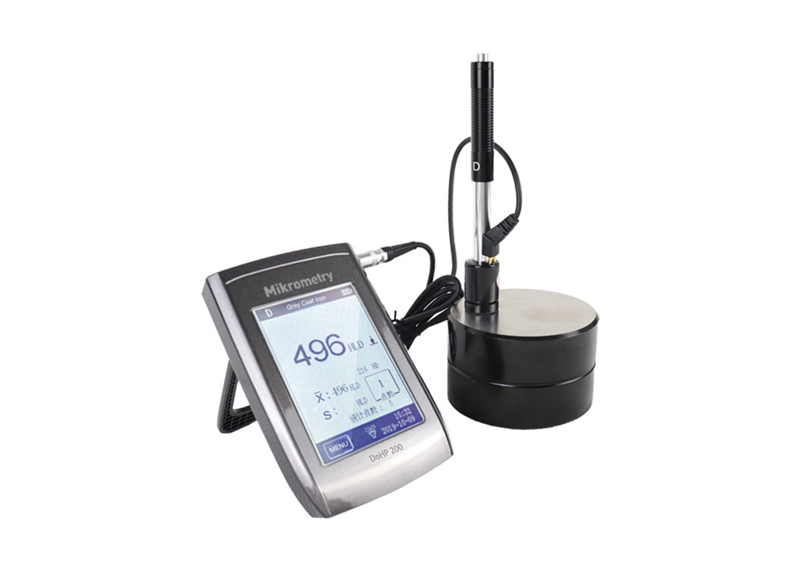

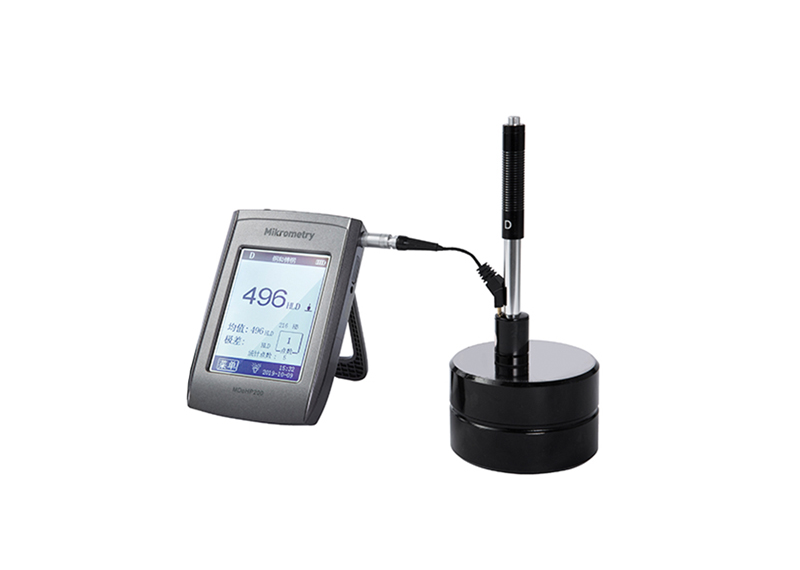

DoPH200 is a small, light, and portable tester. It is most suitable for testing heavy, big, or outdoor metal parts. It can measure in any direction and also easy to be used and accurate on curved test surfaces. Especially, it can automatically compensate for the effect of weight according to the test direction.
DoPH200 uses wireless IR to communicate with the printer, operates with a touch screen and test data could be linked to PC.
DoPH200 Conforms to the Standard ASTM A956-02 & DIN 50156.
New design, test all metal materials with high precision
Easily switch to all hardness parameters (HRC, HRB, HB, HV, HSD, MPa). ?????
High brightness LED back-light, convenient in the dark.
Low power consumption: Auto sleep, automatic shutdown function of saving energy.
Rechargeable Ni-MH battery, standby time 8 hours.
Support Mini thermal printer with RF wireless
Conforms to the Standard ASTM A956-02 & DIN 50156
HL display range | 170~960HLD |
Repeatability | 6HLD |
Testing direction | All direction |
Optional Impact Device | D, DC, DL, D+15, C, G |
Display | 3.9” 240*320(with touch screen), Bright and clear LCD display with backlight |
Operating voltage | 3.6V (rechargeable 800 mAh Ni-MH battery) |
Charging power supply | DC5V/1A |
Printer | Mini thermal printer with RF wireless (Cable no needed) |
Operating environment | Temperature :-20°C~+50°C |
Humidity:20%~85% | |
Storage environment | Temperature :-30°C~+70°C |
Humidity:5%~95% | |
Dimensions | 130mm*86mm*28mm |
Weight | 300g (include D type impact device) |
Accessories | Display Unit, Impact Device D, Test Block, Mini-printer, Charger, Little Support Ring, Cleaning Brush USB Cable, PC Software CD. |
Communication | USB to PC for transfer data |
Certificate | CE |
Options | Impact Device DC; DL; D+15; c; G |
