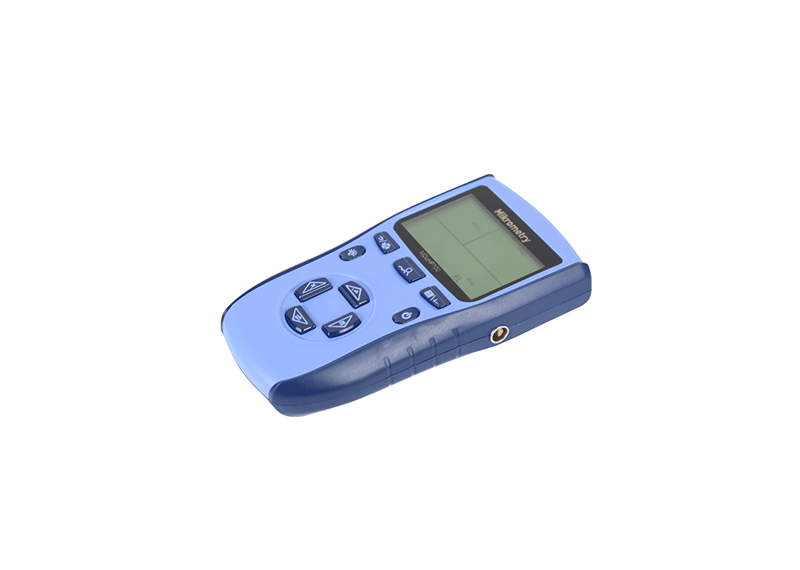

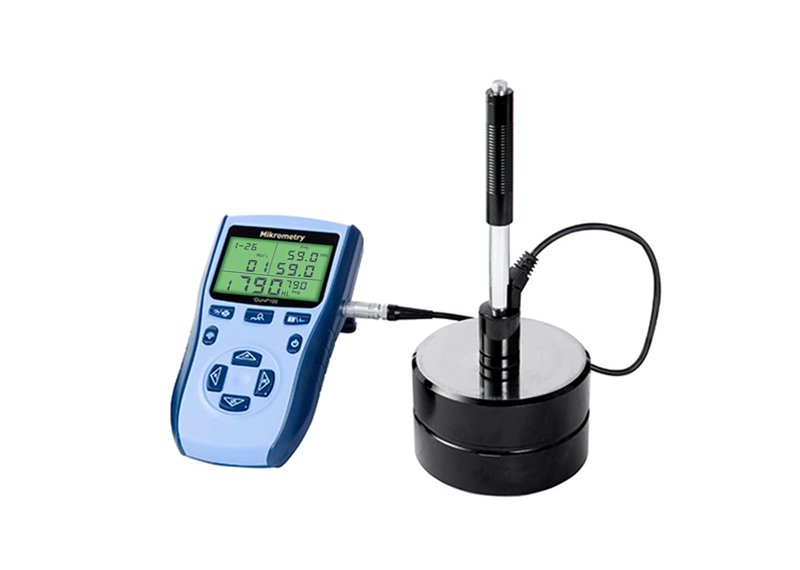

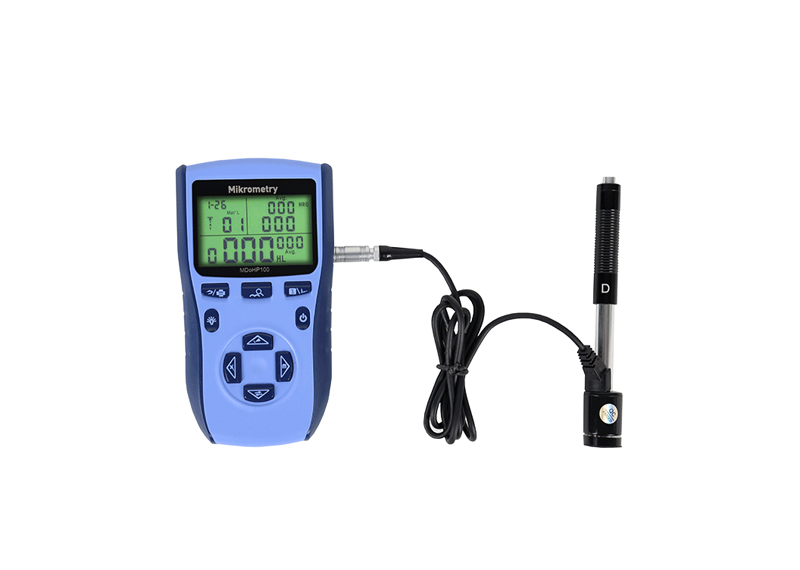

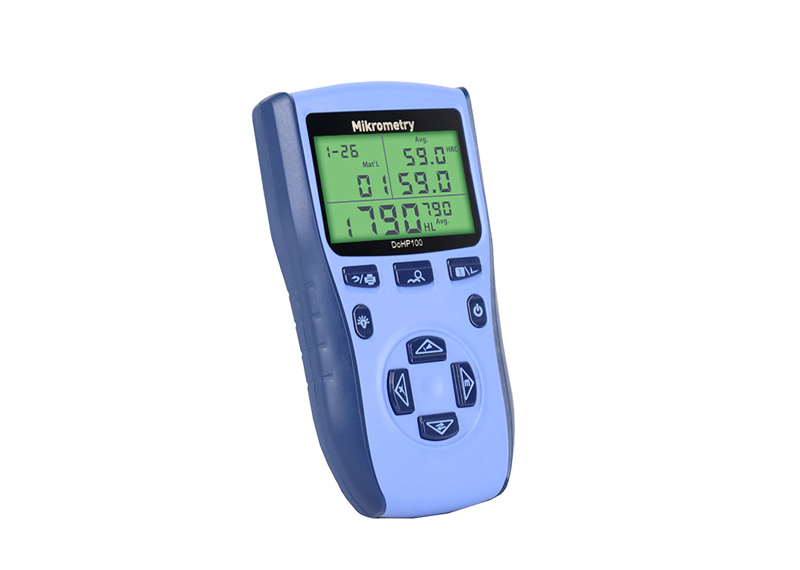

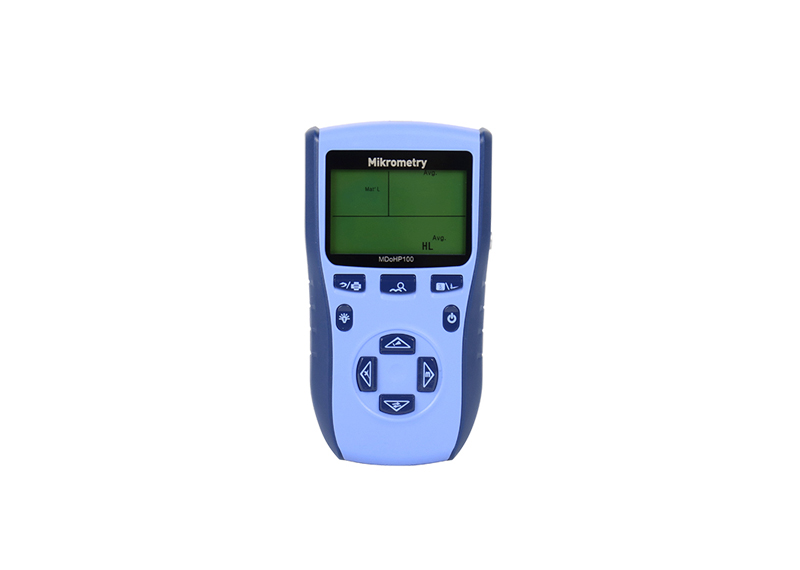

DoPH100 Portable Hardness Tester is a small, light and portable tester. And the leeb portable hardness tester is most suitable for testing of heavy, big or outdoor metal parts. It conforms to the Standard ASTM A956-02 & DIN 50156.
This type of digital portable metal hardness tester is powered by 3 AAA dry batteries; the sensor and the host are connected by Remo, which is convenient and durable for plugging and unplugging.
New design, test all metal materials with high precision
Easily switch to all hardness parameters (HRC, HRB, HB, HV, HSD, MPa)
High brightness LED back-light, convenient in the dark
Support Mini thermal printer with RF wireless
Low power consumption: Auto sleep, automatic shutdown function of saving energy
Conforms to the Standard ASTM A956-02 & DIN 50156
Accuracy | ± 6 HL |
Scales | HRC, HRB, HB, HV, HSD, MPa |
Display | Bright and clear LCD display with backlight |
Testing direction | All direction |
Optional Impact Device | D, DC |
Printer | Mini thermal printer with RF Wireless |
Operating voltage | 4.5V (3 AAA batteries) |
Operating environment | Temperature :-10~+40℃ Humidity: 20%~85% |
Storage environment | Temperature :-30~+80℃ Humidity:5%~95% |
Dimensions | 152mm*83mm*27mm |
Weight | Approx.190g |

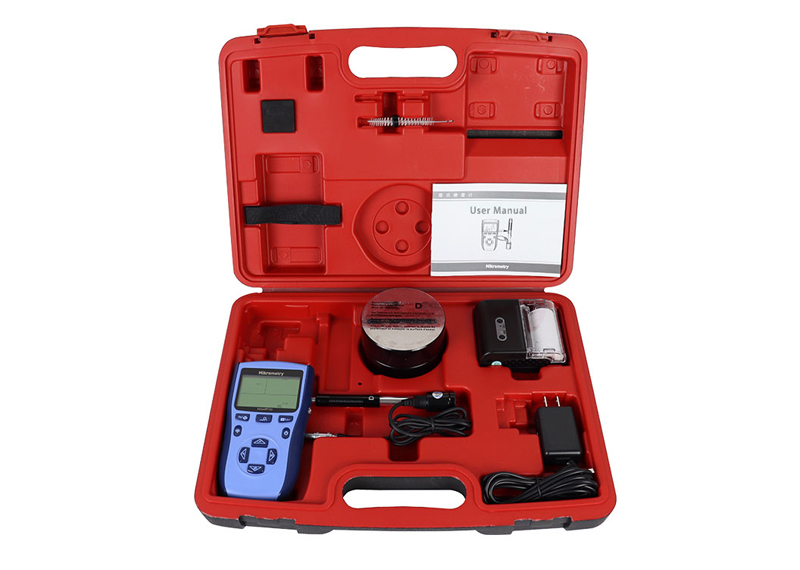

Accessories | Display Unit, Impact Device D, Test Block, Mini-printer, Charger, Little Support Ring, Cleaning Brush |
Certificate | CE |
