EST-TT2 Manual Torque Test Stand


Mikrometry EST-TT2 torque manual test stands are vertical diesel engine test bench, used for pressure wrenches, screwdrivers, rotors and other diesel testing, the overall structure design is reasonable, the handwheel operation loading, reducing the error of manual measurement.

Our sensor or ETT series digital torque tester can be optionally matched by our EST-TT2 torque test stand.

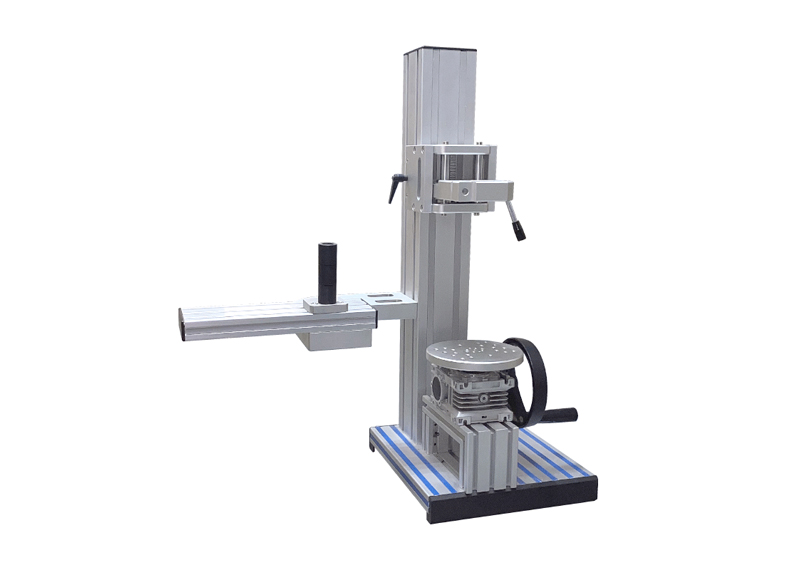

est tt2 manual torque test stand dt

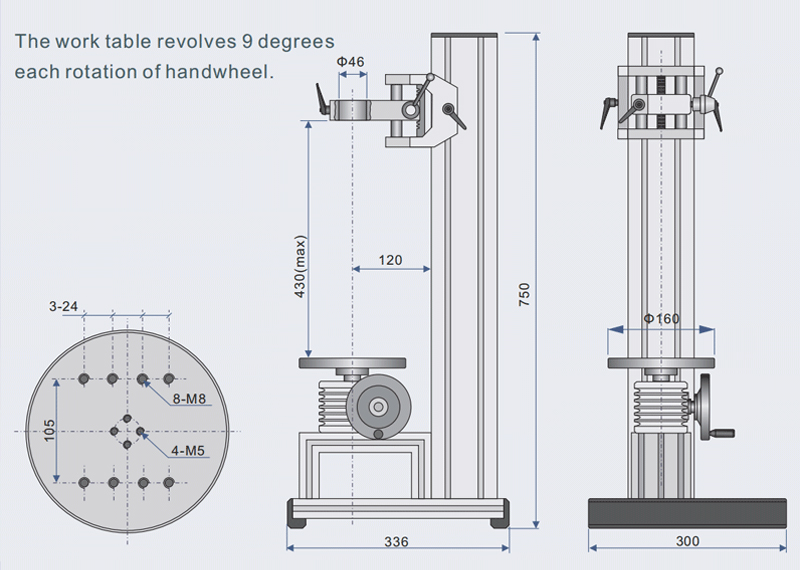

est tt2 manual torque test stand dt1


EST-TT2 Manual Torque Test Stand Features


Handwheel, reducer loading more labor-saving.

The slider can be adjusted up and down.

All aluminum frame, more stable measurement

Optional with our sensor or ETT series digital torque tester


EST-TT2 Manual Torque Test Stand Specification


Maximum Torque

100 N.m

Angular Travel

CW or CWW no limit

Angular Rate

9°/ wheel rev.

Throat

120 mm

Slider Adjustable Height

430 mm (Max)

Slider Stroke

45 mm

Dimension

336*330*750mm

Weight

19 kg
