The EST-FG1V manual test stand is widely used in various industries or scientific research institutions for tension and compression load, insertion and extraction force, damage test, etc. The frame of this manual test stand is driven by a trapezoidal screw. With the simple and stable manual operation, this force gauge stand can be equipped with a digital caliper to measure the displacement changes of various test forces.
EST-FG1V manual test stand is easy to use with its rugged construction.
Precision manual handwheel is equipped.
The testing capacities of this manual test stand are up to 125kg (250lbf,1200N).
Stand travels 3 mm for every turn
The maintenance-free design ensures a better user experience.
The weight of this Mikro tester is 7Kg.

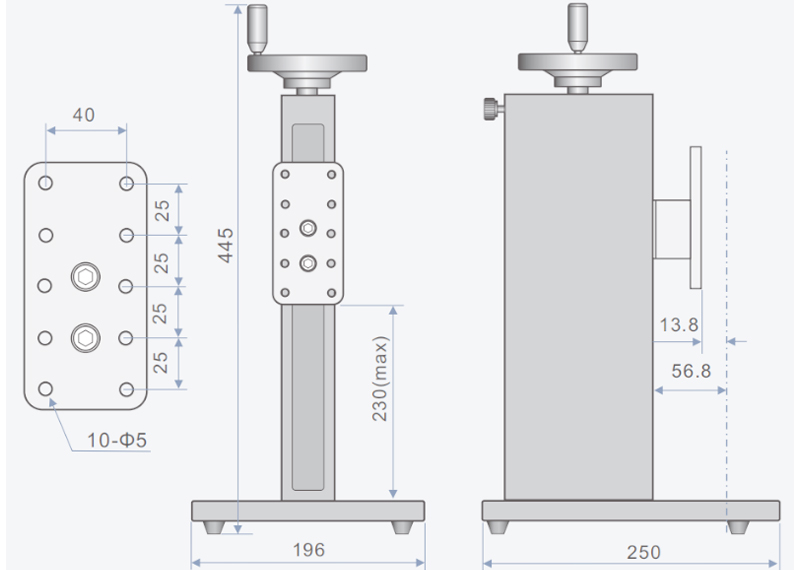

Model | EST-FG1 |
Loading Method | Screw |
Maximum applied force | 1200N |
Screw stroke | 3mm |
Load stroke | 230mm |
Throat Depth | 56.8mm |
Size | 445*250*196 |
