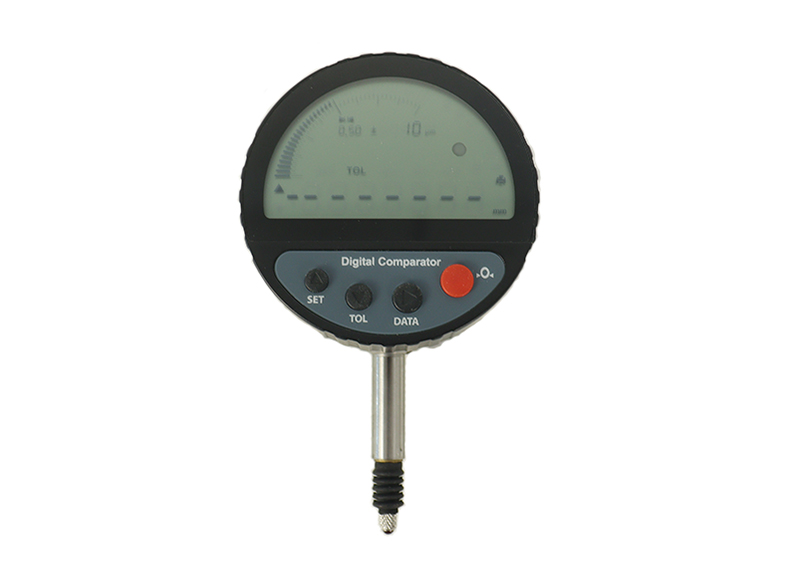

Inductive digital comparator EDC2000 is mainly used for static measurements.
Multi measurement mode: ABS, INC, TOLERANCE, PRESET, Maximum, Minimum, Max-Min

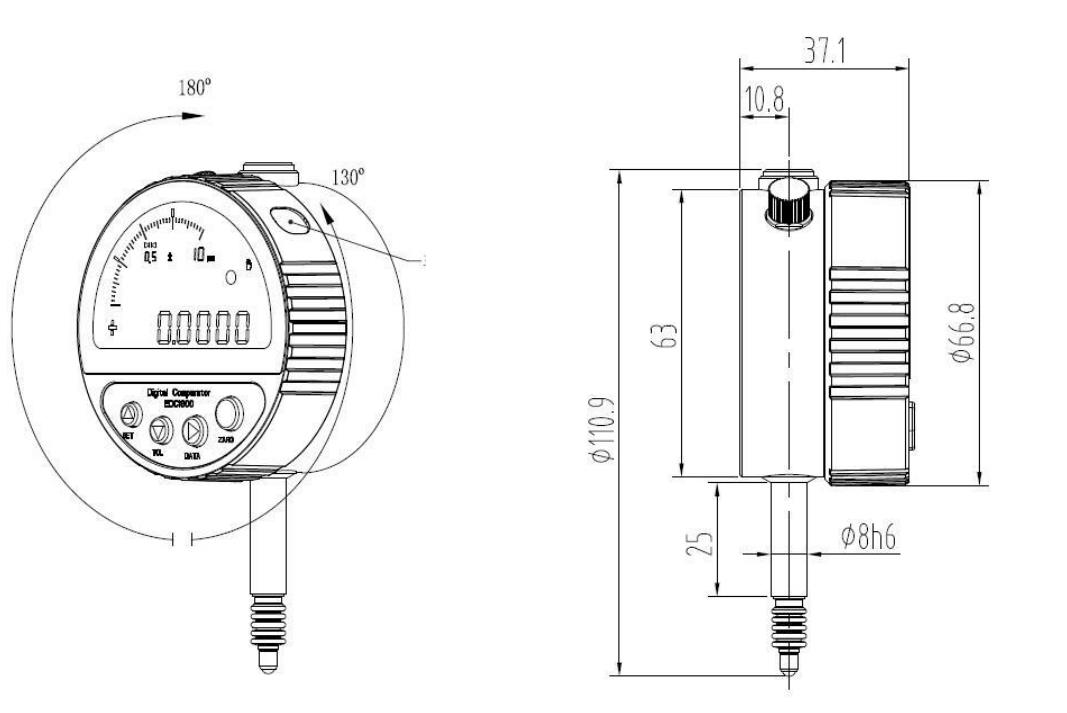

Swiveling display Unit: the display unit can be rotated 180°clockwise and 130°counter clockwise.
Digital and dial dual-display
RGB LED indicator
Data Interface: USB
Measuring force spring is interchangeable
Protection class: lP54
Measuring Span | 2/0.0787" (mm/inch) |
Resolution | 0.0001/0.000005"(mm/inch) |
Total Stroke | 4 mm |
Measuring force | 0.7~0.9 N |
Measuring principle | inductive |
Display | High contrast LCD |
Contact point | Ruby |
Mounting shaft | 8 mm |
Battery | Built-in Li-ion rechargeable batteries |
Continuous working time | approx. 12 h |
Charging time | approx. 3h |
Protection class | IP 54 |
Operating temperature | +5°C to +40°C |
Storage temperature | –10°C to +60°C |
Data Interface | USB |
Weight | 185 g |
μm | mil | ||
Range | Resolution | Range | Resolution |
± 5 | 0.25 | ±0.2 | 0.01 |
± 10 | 0.5 | ±1 | 0.05 |
± 20 | 1 | ±2 | 0.1 |
± 50 | 2.5 | ±5 | 0.25 |
± 100 | 5 | ±10 | 0.5 |
± 200 | 10 | - | - |
± 500 | 25 | - | - |
Measuring force springlug back
Manual lifter with cable release
Ceramic contact point
Tungsten carbide contact point
lnstruction manual
QC pass
USB charger
USB cable
Case
