EST-TT1 Manual Torque Measurement Test Stand


Mikrometru Est-tt1 is a horizontal torque test stand, which is used for torque wrench test. This torque test stand has a double-layer aluminum alloy structure. This torque test stand can be equipped with ETT series digital torque tester for torque test. The manual measurement error can be reduced by hand wheel operation.

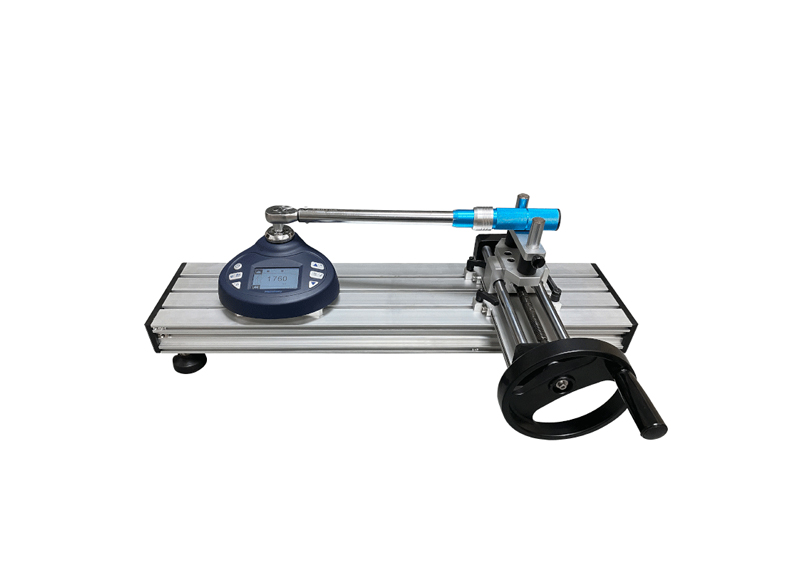

est tt1 manual torque measurement test stand dt

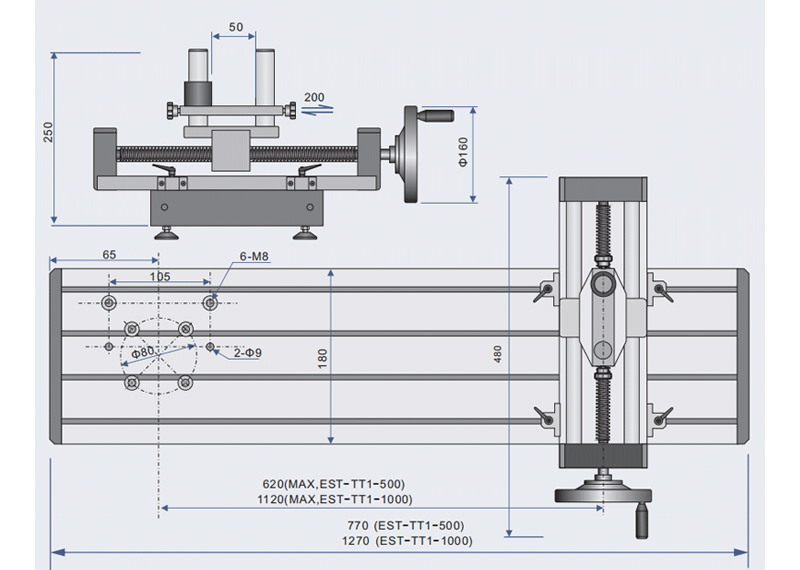

est tt1 manual torque measurement test stand dt1


EST-TT1 Manual Torque Measurement Test Stand Features


Handwheel screw loading is more labor-saving.

Optional measuring table suitable for torque wrenches of different lengths

The position of the handle can be adjusted up and down.

Double-layer aluminum alloy, more stable measurement

Optional our sensor or ETT series digital torque tester, etc.


EST-TT1 Manual Torque Measurement Test Stand Specification


Model

EST-TT1-500

EST-TT1-1000

Loading Mode

Threaded rod

Threaded rod

Arm length

150~600mm

150~1000mm

Stroke

200mm

200mm

Force Sensor Capacity

1000N

1000N

Weight

12kg

16kg
