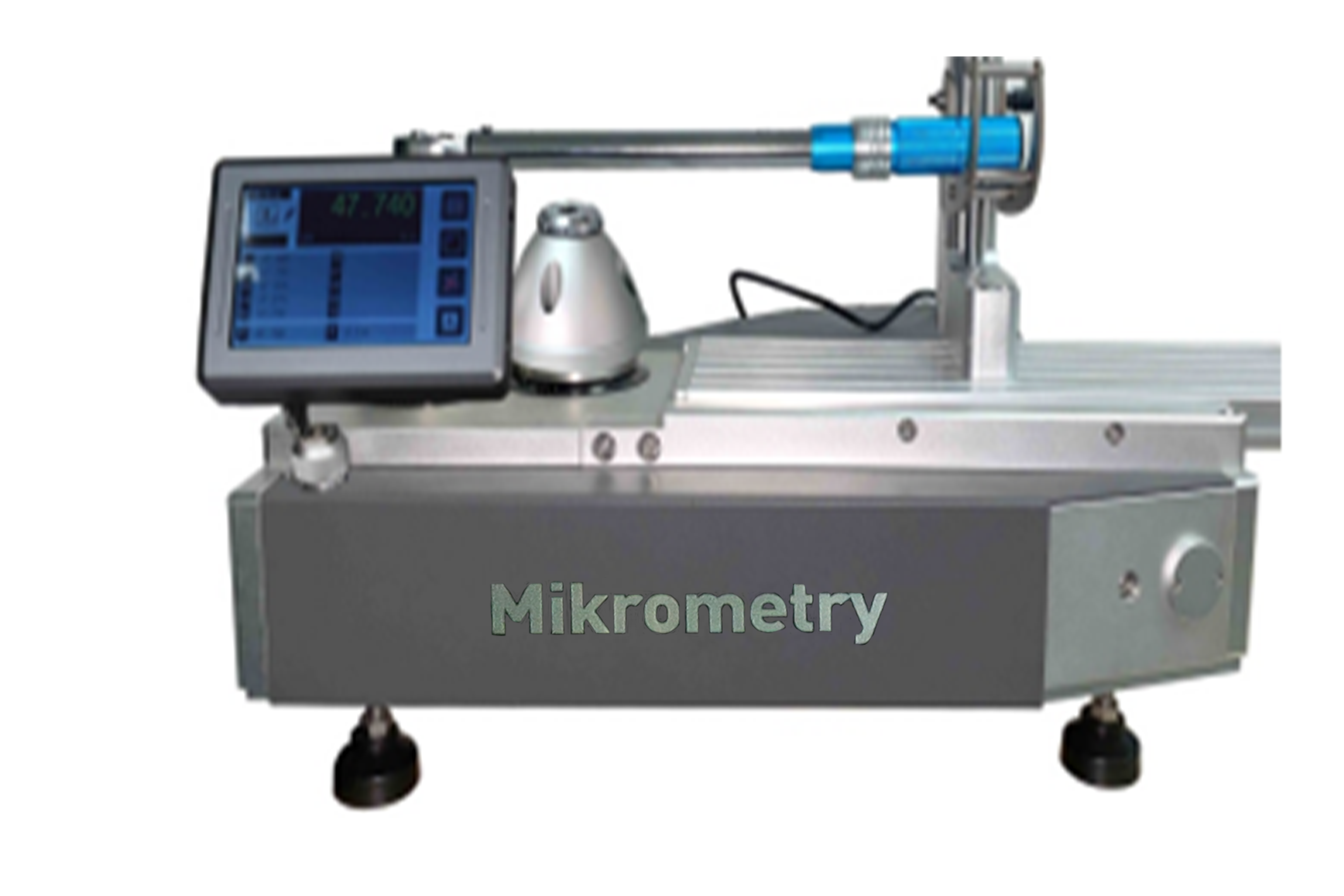

Servo motor loading
Desktop, small size, large torque
Dual sensors, wide measuring range
Sensor rotation measurement, angular display
7" touch screen
Model | TWM200 | TWM500 | TWM800 | |
Measuring range | Sensor1 :2-20Nm | Sensor1 :5-50Nm | Sensor1 : 10- 100Nm | |
Sensor2 :20-200Nm | Sensor1 :50-500Nm | Sensor1 :80-800Nm | ||
Resolution | Sensor1:0.002 | Sensor1:0.005 | Sensor1:0.01 | |
Sensor2:0.02 | Sensor2:0.05 | Sensor2:0. 1 | ||
Precision | 0.3% | |||
Rotation angle | Sensor1 :45o 00’;Sensor2:245o 00’ | |||
The effective length of the torque wrench | 830mm(Max) | |||
Interface | □12.5( 1/2"), 10(3/8"),6.3( 1/4") | □19(3/4"), 12.5( 1/2"), 10(3/8") | ||
Memory | 1000 data | |||
Display | 7" touch screen | |||
Power | AC 220V | |||
Output | USB | |||
Dimension | 780*635*443mm | |||
Weight | 55kg |
