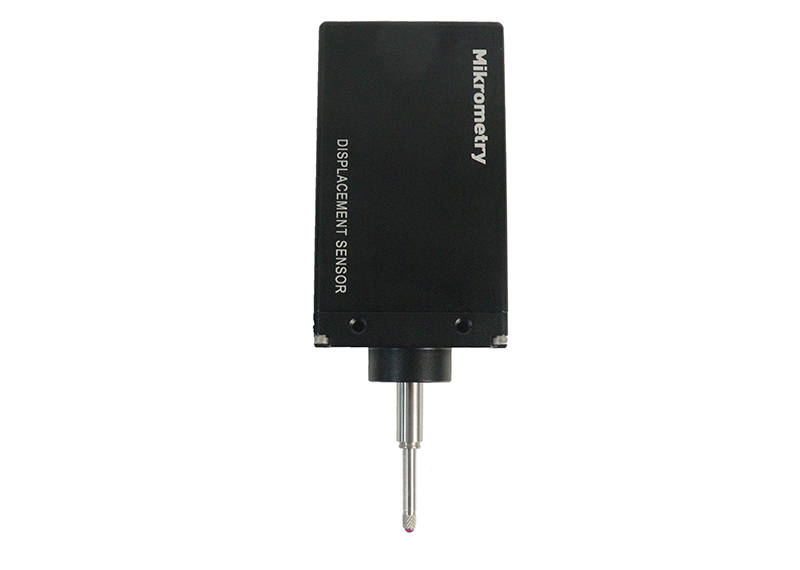

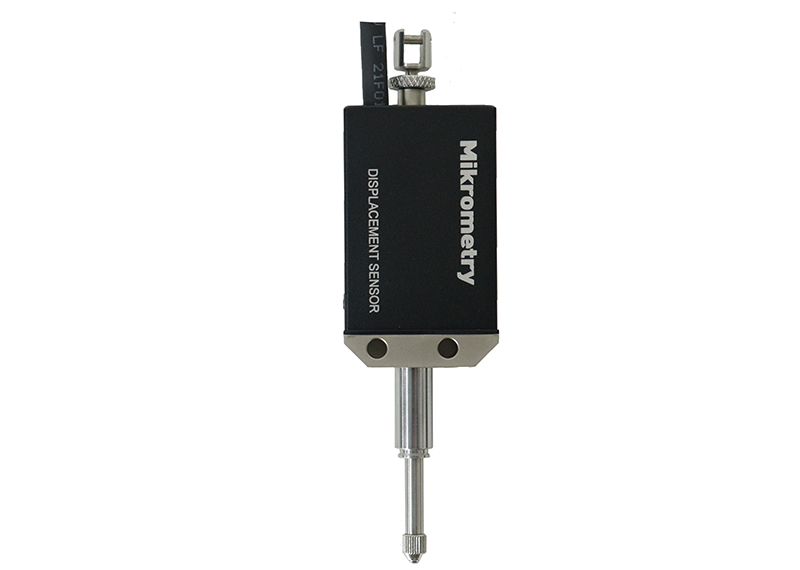

EDO12 Raster Displacement Sensor



EDO12 Raster Displacement Sensor
EDO12 Raster Displacement Sensor


EDO12 Raster Displacement Sensor Features



EDO12 Raster Displacement Sensor Specifications

Models

EDO12-1

EDO12-01

EDO12-001

measuring range

12.5mm

resolution

1μm

0.1μm

0.01μm

Accuracy

≤2μm

≤1μm

≤0.2μm

measuring force

·      0.7±0.2N(Other measuring forces are optional)

Power Supply

DC5~24V

output signal

lIncremental encoder signal(RS485,RS232 optional )

operating environment

0~40℃,20-80%RH

level of protection

IP50

working life

≥10 million times

dimension


15×33.6×107.8mm

Weight

133g(With Sensor wire)



EDO12 Raster Displacement Sensor Technical Drawing


Other Displacement Sensor

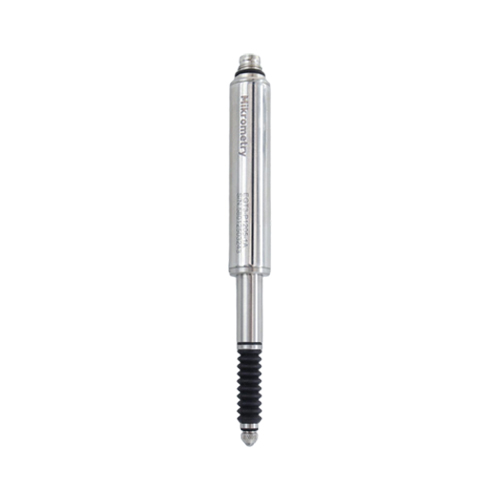

EGT3 Linear Gauge Sensor
