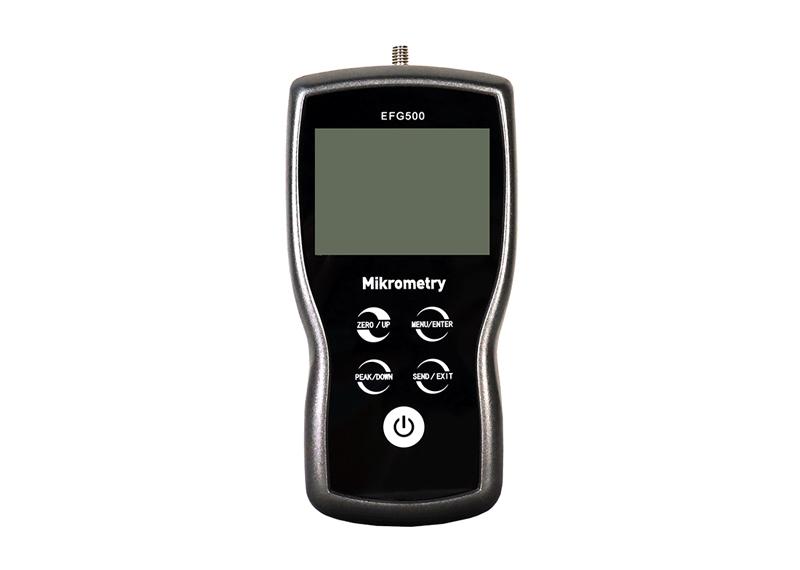

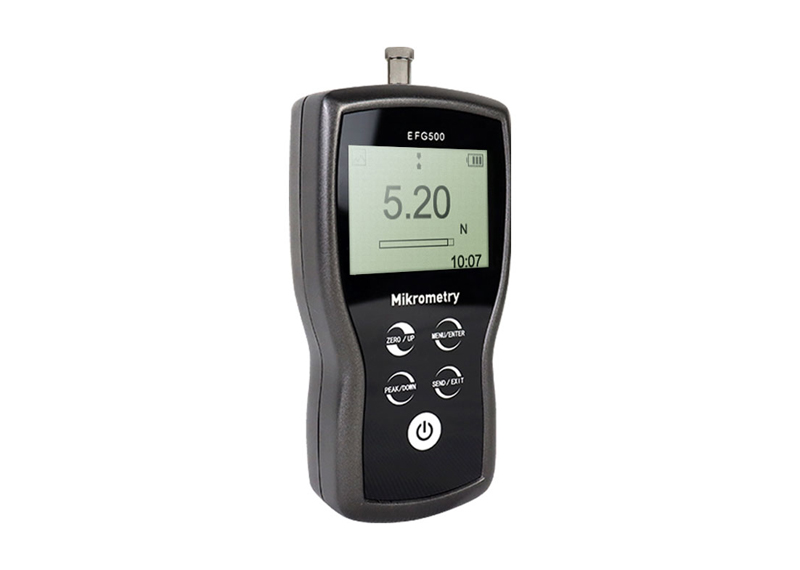

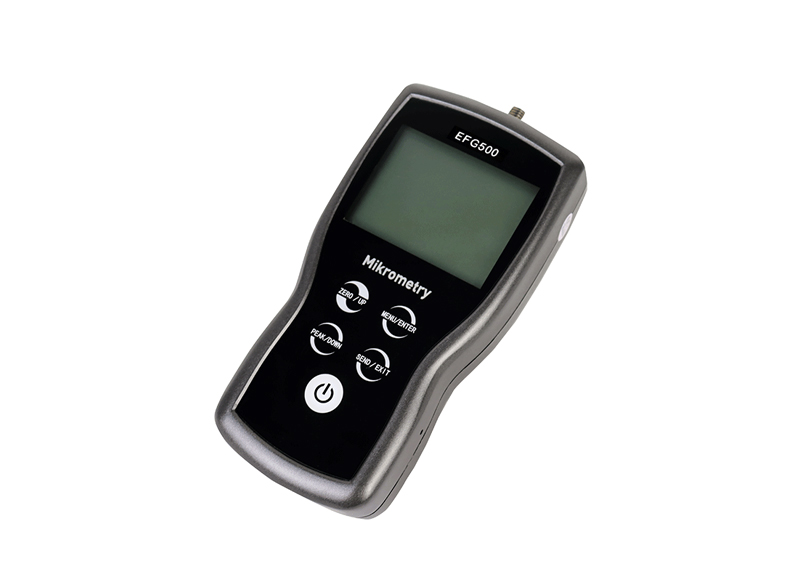

EFG Handheld Digital Compression Force Gauge


The digital handheld compression force measurement tool is a small, simple, multi-function, and high-precision push and pull test measurement instrument, which is widely used in electronic appliances, construction hardware, fire equipment, power machinery, scientific research institutions, and other industries. The digital handheld compression force tester has a high resolution, fast sampling speed, and is easy to read. And this compression force gauge or sensor is a new high-precision push-pull test instrument.

As one type of handy force gauge, the handheld digital compression force tester has an advanced microprocessor, which can timely access the changes of built-in sensor data, continuous correction of the zero point, linearity, and temperature drift of the meter, to ensure the high accuracy of the compression force tester over a long period of time. The digital handheld compression force gauge made by our testing and measuring instruments companies has a compact and reasonable instrument structure, and the digital display is intuitive and clear. The withdrawable external battery can be replaced at will in imported cases.

EFG EN Data sheet Mikrometry PDF


compression force tester
compression force tester
handheld force gauge
compression force tester
hand held force gauge
compression force gauge
compression measurement instrument


Handheld Digital Compression Force Gauge Features




Handy Compression Force Tester Specifications



Accuracy

± 0.2% F.S.

Selectable Units

N、mN、gf、 kgf、 ozf and lbf

Display

160*128 dot matrix LCD(2.8 inch) with LED Backlight

Overload Capacity

150% of F.S. (LCD blinks beyond 110%)

Overload Protection

Overload Protection Mechanism to prevent to be damaged

Measurement Mode

Track、Peak、 Auto-Peak、First Peak

Display Mode

Curve/digital

Data Sampling Rate

2KHz

Display Update Rate

10 times/second

Memory

1000 data

Set Point

Programmable high and low limits

Battery Indicator

The display flashes the battery icon when the battery is low

Power

3.6VDC 800mAH Ni-Mh rechargeable batteries

Battery Life

Approx. 14 hours per charge

Charger / Adaptor

Universal USB/BM charger, Input:110~240VAC

Temperature Effects

<0.03% FS per °C

Communication

USB or RS-232

Software

Free software for USB communication

Outputs

RS-232, "Within" set point output, "Under or over" set point output

Operating environment

Temperature: -10 to 40°C

Relative Humidity:  20 to 80%

Storage environment

Temperature:  -20 to +50°C

Relative Humidity:  5 to 90%

Dimensions

160*73*34mm

Weight

0.7 kg (1.5 lb)

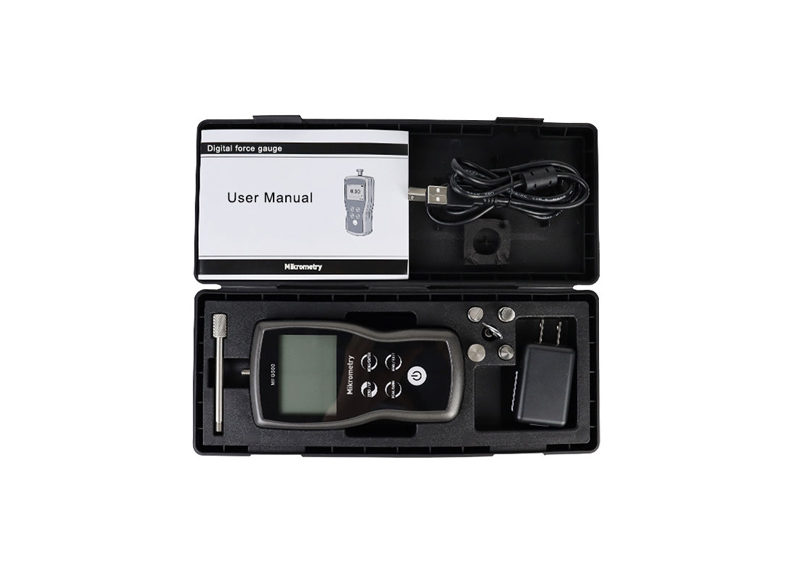

Accessories

AC adapter/charger, USB cable, 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft

Options

Mini-printer, Measuring Adapters, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit.




Models

Capacity/Resolution

N

kgf

lbf

Ozf

gf

mN

EFG5

5/0.0005

-

1.1/0.0001

18/0.005

500/0.05

5000/0.5

EFG10

10/0.001

1/0.0001

2.2/0.0005

35/0.01

1000/0.1

10000/1

EFG20

20/0.005

2/0.0005

4.4/0.001

70/0.01

2000/0.5

20000/5

EFG50

50/0.005

5/0.0005

11/0.005

180/0.05

5000/0.5

50000/5

EFG100

100/0.01

10/0.001

22/0.005

350/0.1

10000/1

-

EFG200

200/0.05

20/0.005

44/0.01

700/0.1

20000/5

-

EFG500

500/0.05

50/0.005

110/0.01

1800/0.5

-

-

EFG1000

1000/0.1

100/0.001

220/0.05

3500/1

-

-

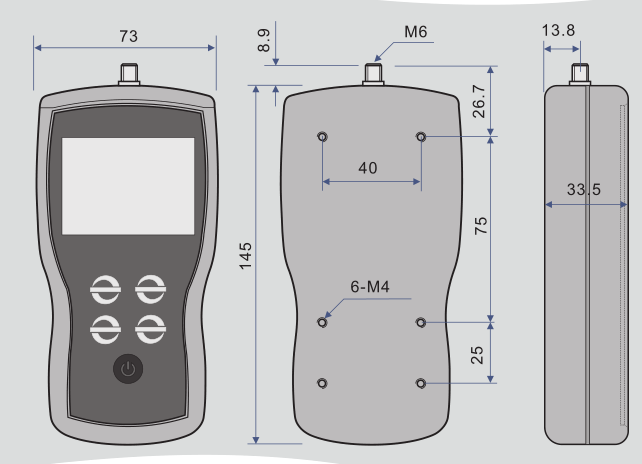

Handheld Digital Compression Force Tester Technical Drawings




How to Use Digital Compression Force Tester?


1.Choose the model

This series force gauge has a variety of models that can be selected, different models corresponding to different ranges and resolutions, as shown in a table on the back cover of this manual. Select the appropriate model based on practical need before use. DO NOT exceed the capacity of the gauge, or it may damage the force gauge forever.

2. Choose measuring heads

In order to complete the test work conveniently, the force gauge is equipped with a variety of measuring heads(adapters). Select the appropriate measuring heads according to the actual need.



3. Power on/off

Touch use1.jpg for 2 seconds to power On or Off.

After switching the instrument on, you should check the model whether it is you want.Check Battery Icon. If the power is low, should be recharged.

4. Testing

After completion of the test preparation, testing can be done.

4.1 Measuring heads

Select the appropriate measuring head, and install it in the gauge's measurement axis. Tighten it by hand, without the use of tools. Do not use a deformed or damaged measuring head.

NOTE: Do not use tools to vigorously tighten the measuring head, otherwise it will damage the force gauge.

4.2 Units

The force gauge has a variety of measurement units, select the appropriate unit of force. Under the measure interface, press the Menu key to enter the menu.

4.3 Test Mode

This series force gauge has 3 kinds of measurement test modes that can choose. interface.

You can select a Measure Mode by touching use2.jpgunder the measure interface, Or can change it in menus.

Track: The real-time measuring mode, under this mode, press the zero key use3.jpgthe force gauge will be cleared (remove tare).



Peak: Peak readings will not change until a higher value is measured. Under this mode, touch the zero key the force gauge will update the display immediately.

Auto-Peak: In this mode, the gauge displays a peak value of force in a fixed duration. The duration time can be set in menus.

4.4 Tolerance Limit

The tolerance limits can be set for GO/NG measurement also.

If you set the alarm on and a valid limit, The iconuse4.jpg will be displayed for within limit, lower than lower limit or exceed upper limit.

4.5  Zeroing

Touchuse5.jpg to clear the force gauge in track mode for removing the tare.

5. Hand-held or Mounting

The force gauge is a portable Instrument, you can do the testing hand-held, or you also can install the force gauge on the test stand so as to obtain accurate measurement results. There are 6 M4.0 mounting screw holes on the back, which can be fixed on the test stand.

NOTE: The depth of the mounting hole is 8.0mm, please choose the appropriate screws, screw into the depth of the force gauge shall not be greater than 7mm.

6. Storage

Measured results can be stored in the force gauge so that you can review or print them later.

Under the measured interface, touchuse6.jpg to save value measured, and the save iconuse7.jpg will be displayed.

7. Browse and Printing

The values saved in memory can be reviewed in the Browse function. The data in memory can be printed into a report.
