EHG12 Digital Displacement Measurement System



ehg12 digital displacement measurement system mikrometry

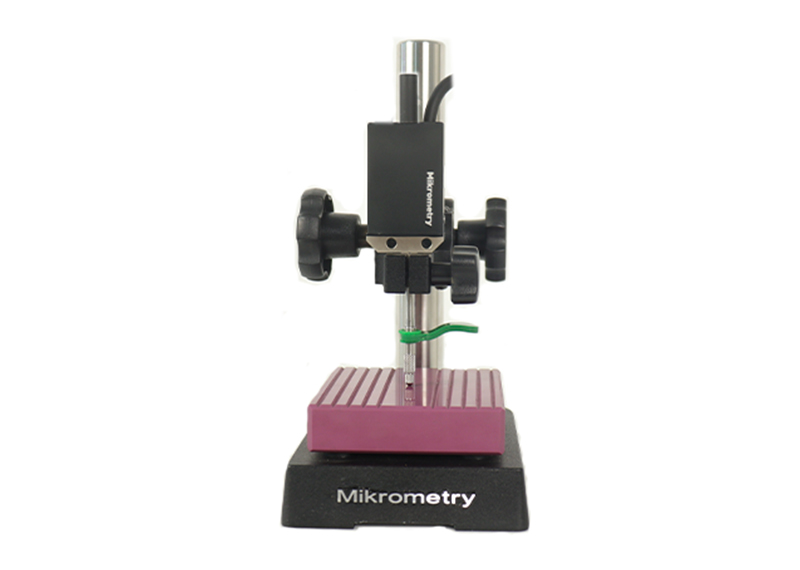

ehg12 digital displacement measurement system mikrometry 1

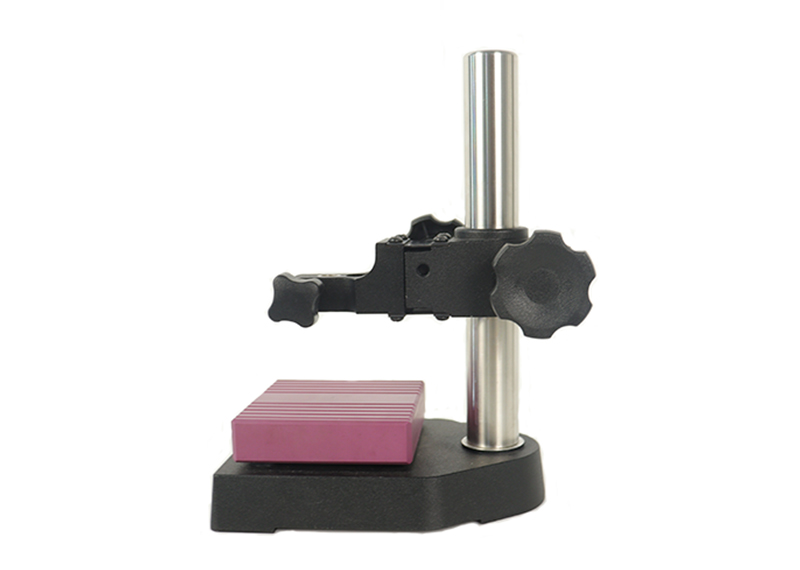

ehg12 digital displacement measurement system mikrometry 2

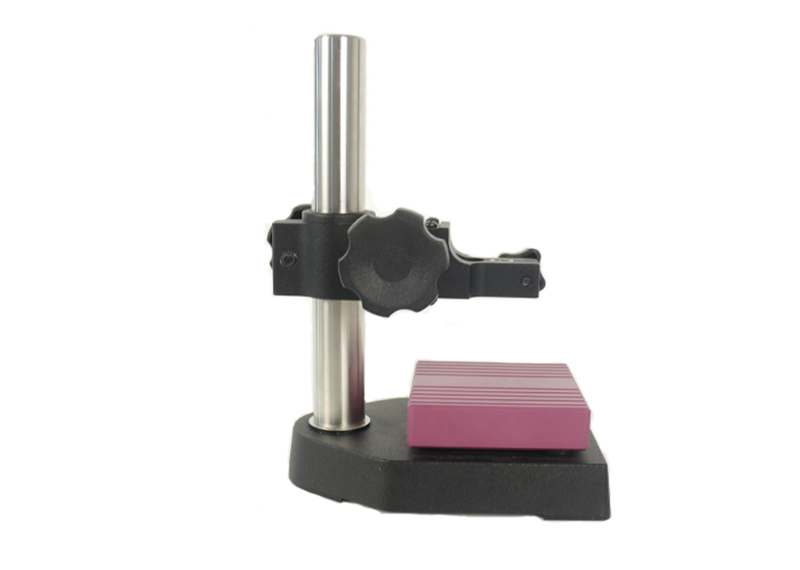

ehg12 digital displacement measurement system mikrometry 3

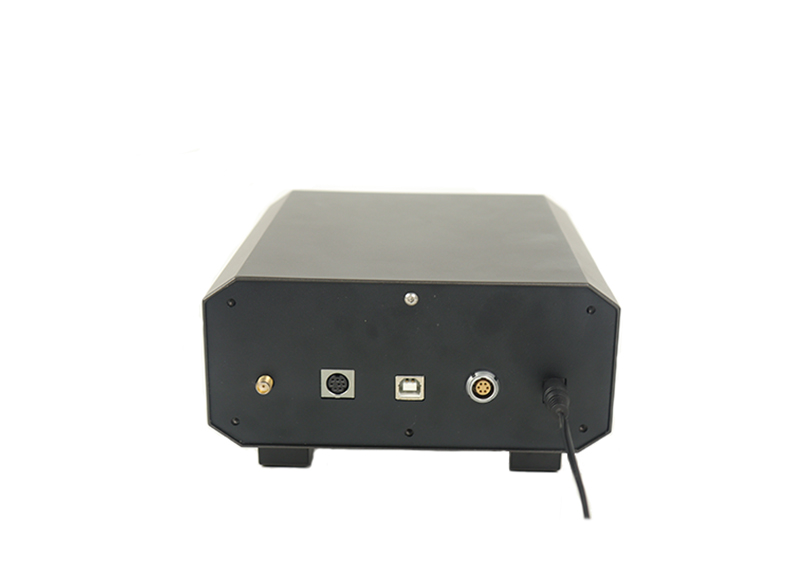

ehg12 digital displacement measurement system mikrometry 4
ehg12 digital displacement measurement system mikrometry 5


EHG12 Digital Displacement Measurement System Features



EHG12 Digital Displacement Measurement System Specifications

Type

EHG12-1

EHG12-01

Measurement Range

0-12.5mm

Least count

1µm

0.1µm

Repeated accuracy

≤2µm

≤0.2µm

Accuracy(19-20℃)

≤3µm

≤1µm

Measuring speed

Maximum 5000 mm/s

Measuring force

0.7±0.2N

External output

data interface, USB, RS232

Displayer

Independent 4-inch dot matrix LCD display

Measuring pin(standard configuration)

Annulus needle

Operating environment

0-40℃,20-80%RH

Units

mm/μm

Test board

80*80mm ceramics(Other optional)

Standard configuration

data display instruments board Measuring pin power line handle

Power supply

input:AC100-240v 50-60Hz output:DC5V/1A
