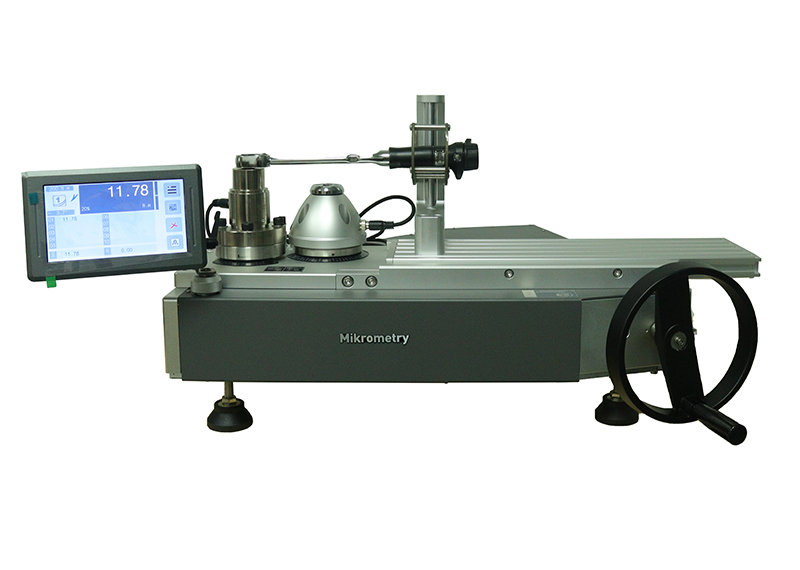

Desktop, small size, large torque of the portable torque meter
Dual sensors, wide measuring range
Sensor rotation measurement
Rotation angle display
7'' touch screen
Model | TWW200 | TWW500 |
Measuring range | Sensor 1: 1~20 Nm | Sensor 1: 2.5~50 Nm |
Sensor 2: 10~200 Nm | Sensor 2: 25~500 Nm | |
Resolution | Sensor 1: 0.002 | Sensor 1: 0.005 |
Sensor 2: 0.02 | Sensor 2: 0.05 | |
Precision | 0.3% | |
Rotation angle | Sensor 1 : 45°00';Sensor 2 : 245°00' | |
The effective length of torque wrench | 830mm (Max) | |
Interface | □12.5(1/2"),10(3/8"),6.3(1/4") | □19(3/4"),12.5(1/2"),10(3/8") |
Memory | 1000 data | |
Display | 7" touch screen | |
Power | DC 5V1A | |
Output | USB | |
Dimension | 780*688*433mm | |
Weight | 45kg |
