EDV100 Indentation Depth Measuring Device Calibration Instrument


Suitable for precision testing and calibration of indentation measuring mechanism of Rockwell hardness tester, in accordance with GB/232.2, ISO 6508.2, and ASTME 18.

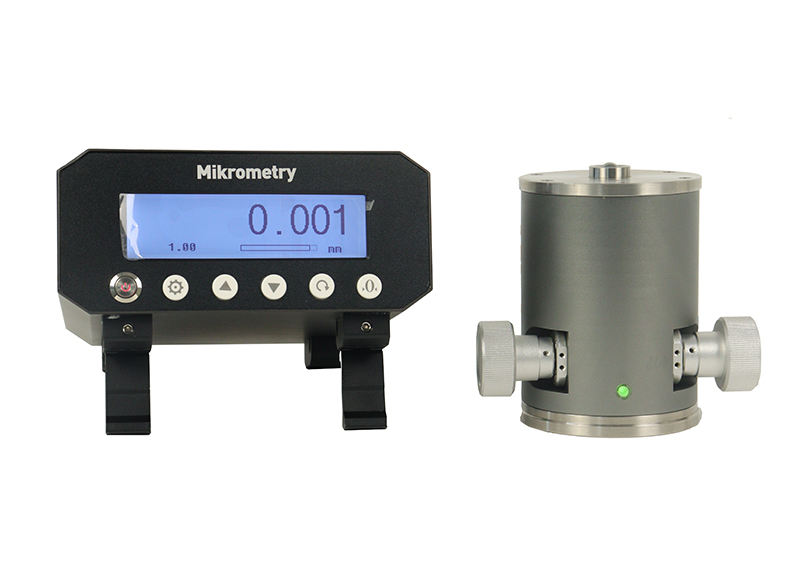

indentation depth measuring device calibration instrument

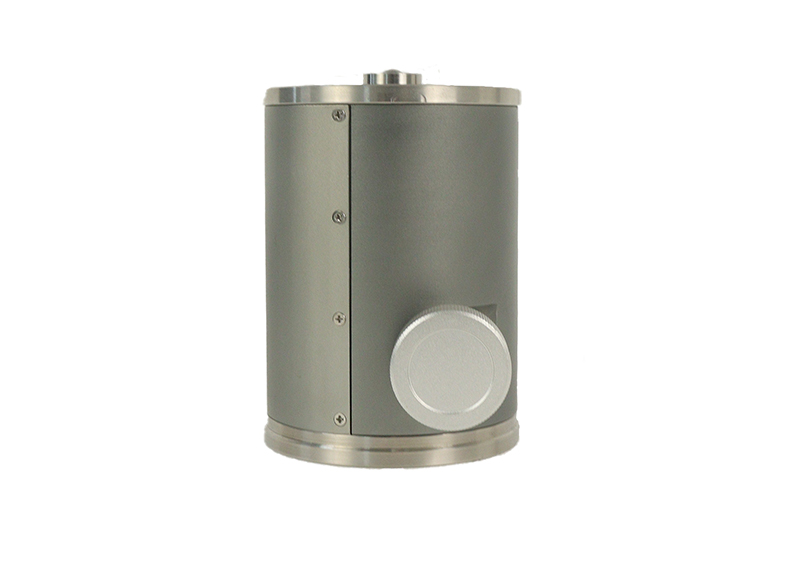

edv100 indentation depth measuring device calibration instrument mikro metry
edv100 indentation depth measuring device calibration instrument mikro

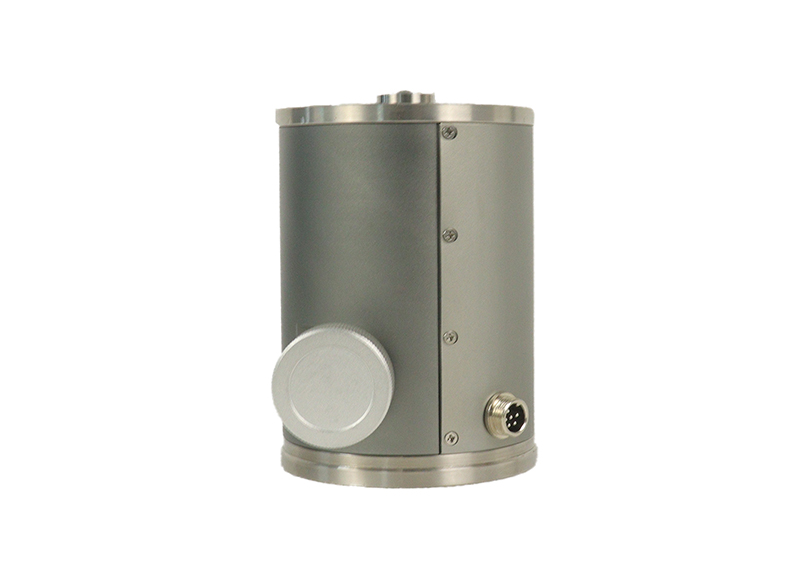

edv100 indentation depth measuring device calibration instrument mikromerty


EDV100 Indentation Depth Measuring Device Calibration Instrument Features



EDV100 Indentation Depth Measuring Device Calibration Instrument Specifications


Type

EDV100

Range

5mm

Resolution

0.01μm

Accuracy

0.2μm

Display

256*64 With backlit LCD

Power

DC 5V1A

Operating environment

10~40℃;20~80%RH

Size/mass

Sensor:86*133mm;1.8kg

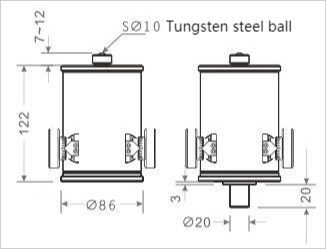

EDV100 Indentation Depth Measuring Device Calibration Instrument Technical Drawings


EDV100 Indentation Depth Measuring Device Calibration Instrument Technical Drawings

Rotate once measuring shaft lift 0.025mm



EDV100 Indentation Depth Measuring Device Calibration Instrument Two Installation Forms

EDV100 Indentation Depth Measuring Device Calibration Instrument Two Installation Forms
