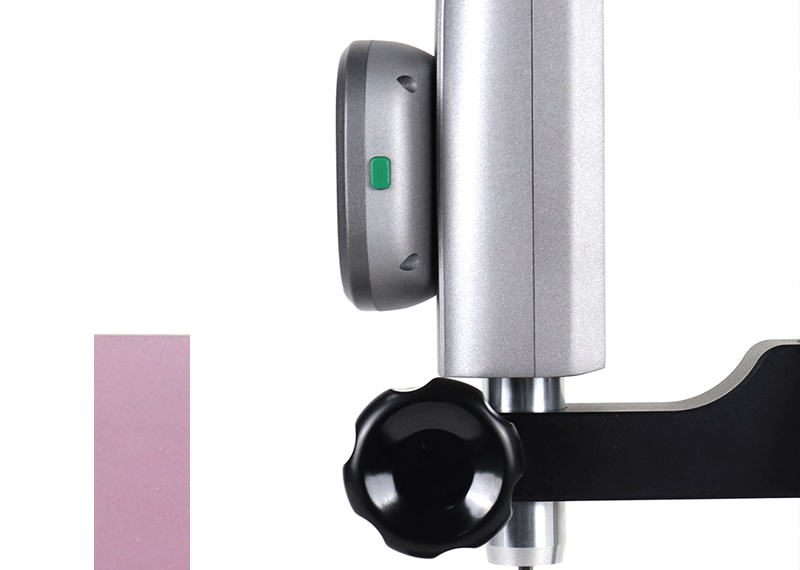

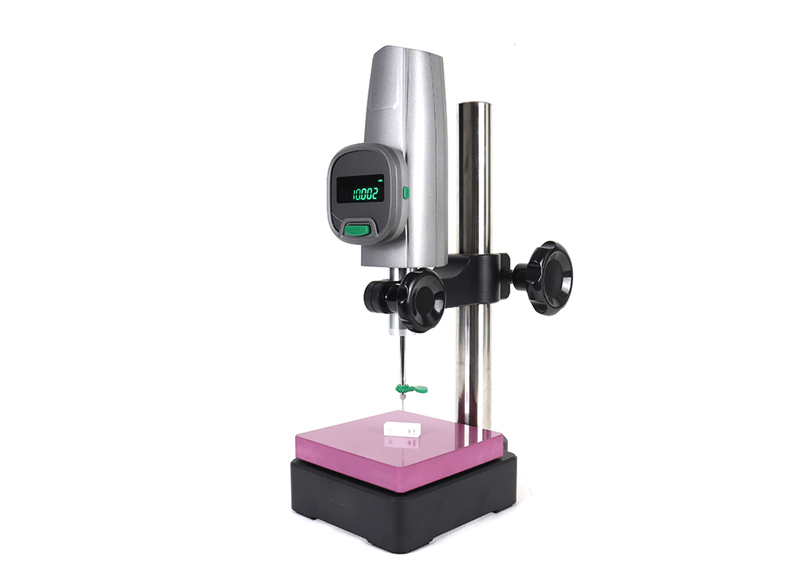

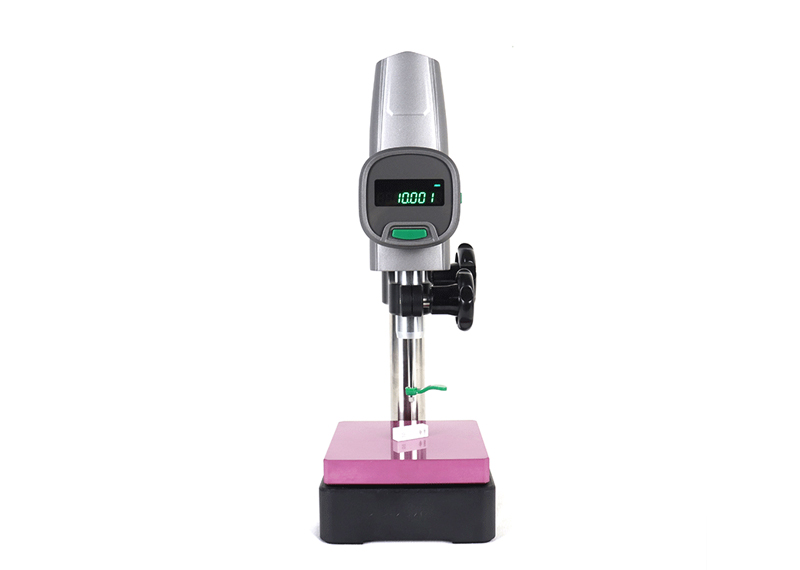

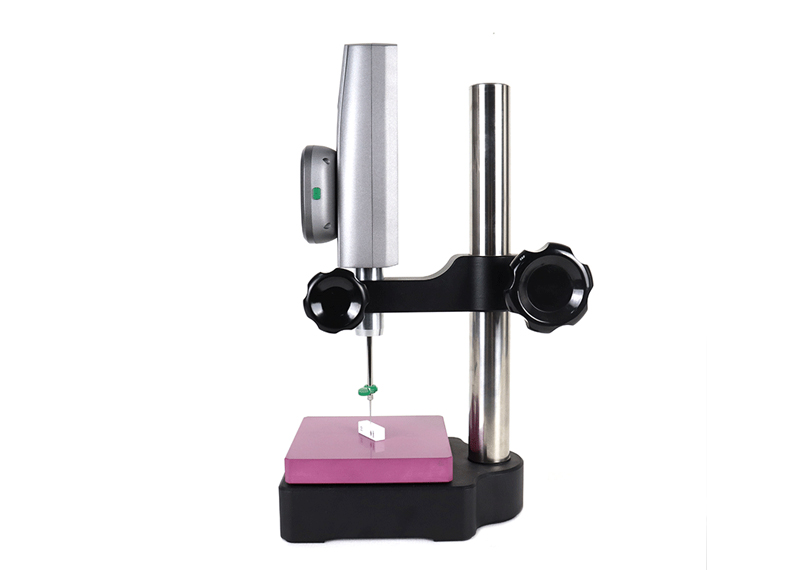

The DHG-050N precision height gauge is a compact digital micrometer offering flawless contact measurements of dimensions, thickness, and depth. This precision height gauge features a measuring length equal to 50 mm and accuracy of 1 µm at 20° C. Stands are available in ceramic, granite for added stability and a wide variety of probe tips are available to suit most applications.
Measuring length equal to 50mm
Accuracy of 1 µm at 20°C
Zero at any position
Readings as small as 1 µm or even 1 µm can be made depending on the counter.
High-quality ceramic platform, stable and wear-resistant
Support power bank (Optional)
Measurement | 0-50 mm |
Accuracy(20℃) | ≤3μm |
Repeatability(20°C) | 1μm |
Minimum Readout | 1μm |
Response Speed | Max 5000mm/s |
Measuring Force | 0.8-1.2N |
External Output | USB |

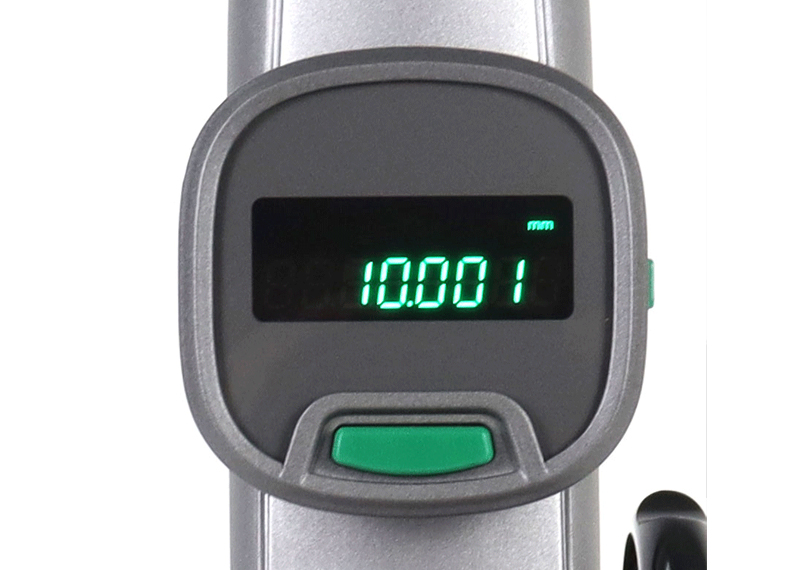

Displayer | 7bits High Brightness Green LED |

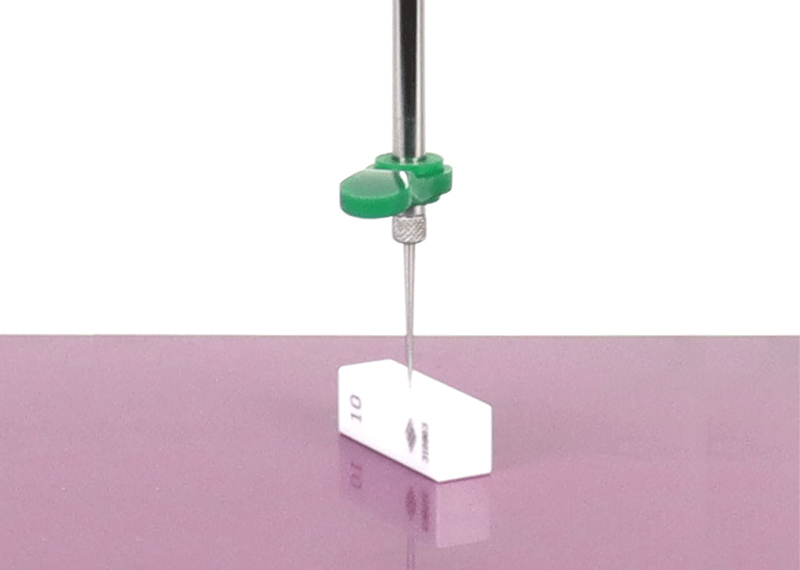

Probe | Ball, Flat, Conical |
Unit | mm/inch |
Operating Environment | Temperature:0-40℃ |
Humidity:20-80% | |
Table Size | 130x130mm |
Power Adaptor | AC:100-240V 50/60Hz Output: DC 5V/1A |
Standard Accessories | Stand, Ball Tip, Flat Tip, Conical Tip |
Optional Accessories | Special-shaped Tips, Low Measuring Force Device, Portable battery, Foot Switch |
Size | 200x138x397 mm |
Weight | 11.6kg |
